Machining capability

The machining plant that Turncircuit operates includes:

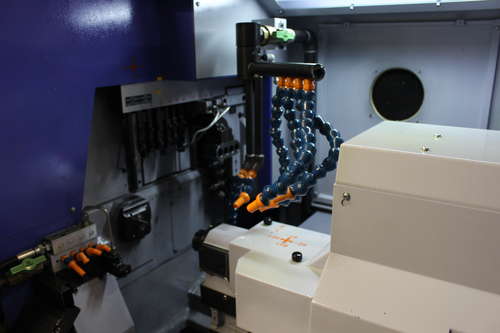

Star precision sliding head lathes

Star: High Precision Sliding Head Lathes

Bar stock size: 38mm Dia Barstock.

Range: 2mm to 38mm Dia

Length: 2mm to 350mm

Accuracy: .005mm to 0.010mm Dia

Milling capability: Profiles, Drilling Tapping, Thread Whirling

Materials: All Steels, Stainless Steel, Aluminum, Titanium and Nimonics

Mori Seiki: Mill/Turn Centre

Barstock size: 65mm Dia Barstock

Range: 10mm to 62mm collet, Billet 260mm.

Length: 400mm max.

Accuracy: 0.010mm

Milling capability: Profiles, Holes, Thread Milling.

Materials: All Steels, Stainless Steel, Aluminum, Plastics, PTFE, PEEK, Nylon, Titanium and Nimonics

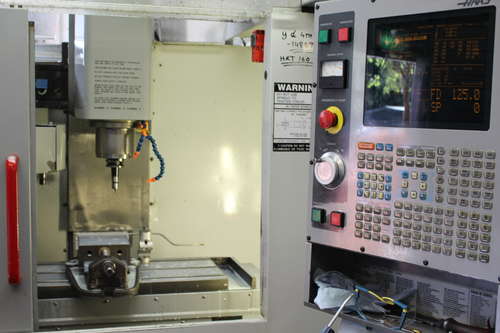

Haas machining centre

Haas/Sabre: Vertical Machining Centre’s

Travel:(760mm by 450mm by 500mm), (350mm by 300mm by 300mm), (1000mm by 600mm by 500mm)

Range: 10mm to 400mm sq.

Accuracy: 0.015mm

4th Axis Capability

Materials: All Steels, Stainless Steel, Aluminum, Plastics, PTFE, PEEK, Nylon, Titanium and Nimonics

DMG/Mori Seiki: 5 Axis Turn/Mill Centre

Barstock size:10mm to 60mm Dia Barstock

Range: 10mm to 60mm collet, Billet 370mm.

Length: 450mm max.

Accuracy: 0.010mm

Milling capability: Profiles, Holes, Thread Milling.

Materials: All Steels, Stainless Steels, Aluminum, Plastics, PTFE, PEEK, Nylon, Titanium and Nimonics

Digital design

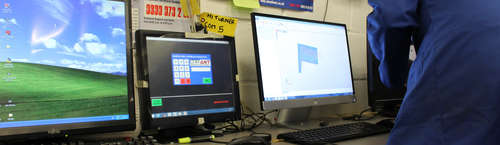

CAD systems

We operate two CAD/CAM systems to handle the Programming, Designing and Engineering of our customers' components.

(EDGECAM version 2015 R1, 3D CAD/CAM, Part modeler and ESprit 2014)

These systems have the capability of handling 3D Solid Models, and can produce NC programs for our Mill/Turn Five Axis Lathe, Mill/Turn Centre, Vertical Machining Centres integrated with a 4th axis, and 3D printer.

To handle the procurement of Materials, Customer Orders, Purchases, Control of Processes, Planning, and Invoicing we have in place a “MRP”system (REDant). The system has allowed us to consolidate and manage all aspects of our customers' orders with full traceability and full control.
